Profiles
Our wide range of profiles cater to any design aesthetic, from traditional to contemporary.
Cladding Corner Trim Enquire
Cladding
TGV
Features a T&G joint system, where the boards fit together, with a protruding tongue on one board that fits into a groove on the next board. This creates a strong and secure joint and is often used for both traditional and contemporary architecture due to its uniform appearance, and versatility.
Vertical Square Halflap
A clean-lined profile with square-edged boards installed vertically to create a modern, uniform appearance. Its simple geometry lends itself well to contemporary buildings and large façades, offering a minimalist aesthetic with strong architectural presence.
Secret Fix T&G
A clean, seamless profile with a hidden fixing system. The groove on the back of each board fits over a batten’s tongue, concealing fixings for a refined look. Ideal for modern designs or upgrading traditional façades, it offers a smooth, uninterrupted finish with strong visual appeal.
Shiplap
With overlapping edges and a subtle tongue and groove system, Shiplap creates distinctive shadow lines and helps shed water effectively. Its clean yet rustic finish makes it a versatile choice, suited to both traditional settings and modern architectural styles.
Splayed Halflap
A traditional profile with a rebated edge and interlocking tongue, creating a tight, weather-resistant joint for use in horizontal applications. Its rustic charm suits period-style buildings, and it's particularly well-matched to homegrown timbers, offering visual character and weather protection.
Rainshield
Also known as Splayed cladding, this rhombus-profiled board is installed with gaps for ventilation, aiding in moisture control. Designed for use over watertight surfaces, Rainshield offers a striking slatted look with angled options (30° or 45°) and a bold, modern edge.
Vertical Chamfer Halflap
This profile features V-shaped chamfered edges that form continuous shadow lines when installed vertically. It adds visual depth and texture, making it ideal for feature walls or architectural accents, giving a perfect blend of subtle detailing and modern character.

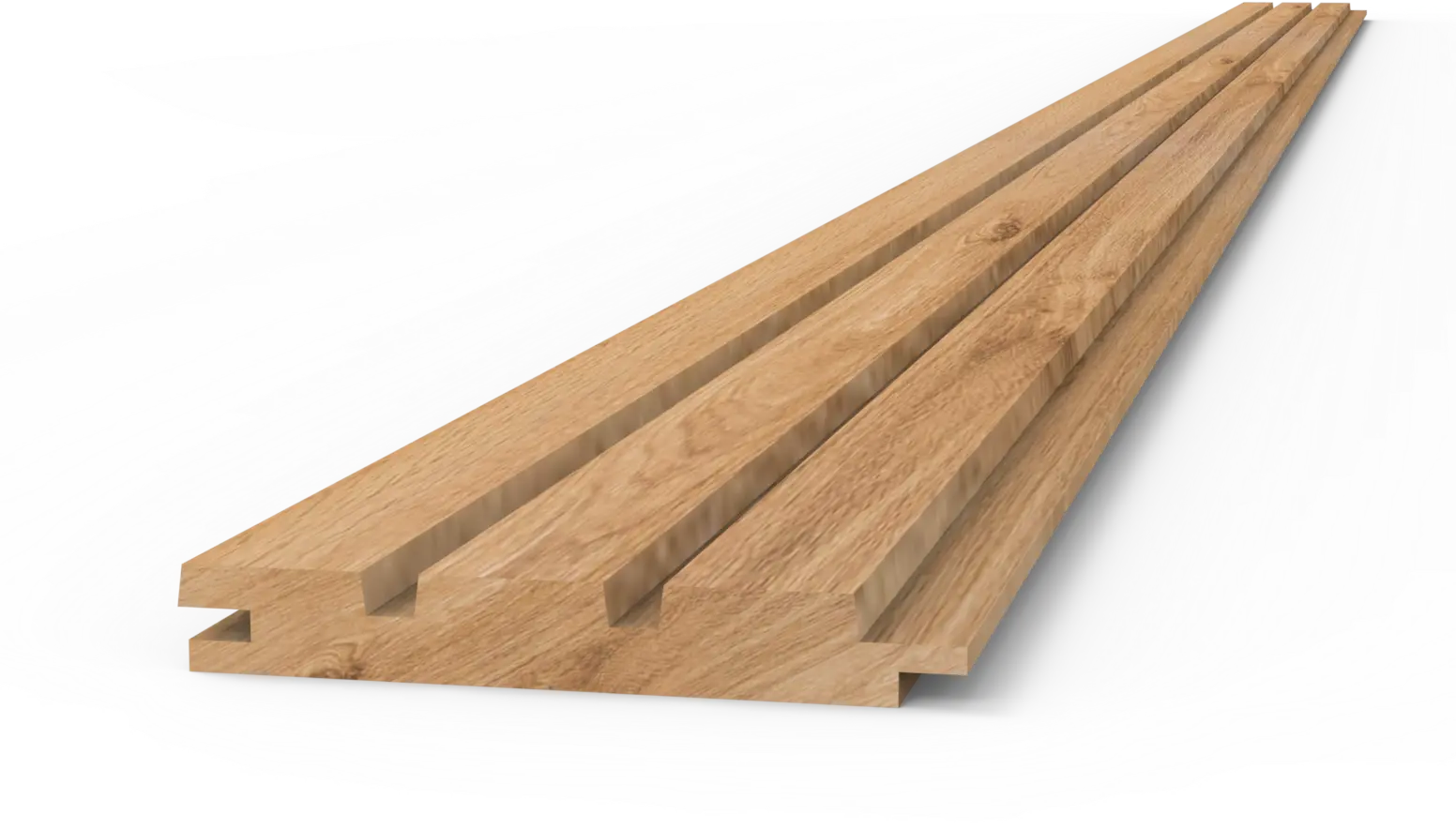

Slatted
A sleek profile with defined gaps that create deep shadow lines, ideal for modern designs and compact spaces. The batten-like boards offer sharp, clean lines that change with the light. Fixings are hidden for a crisp look, delivering a bold yet elegant visual effect.
Corner Trim

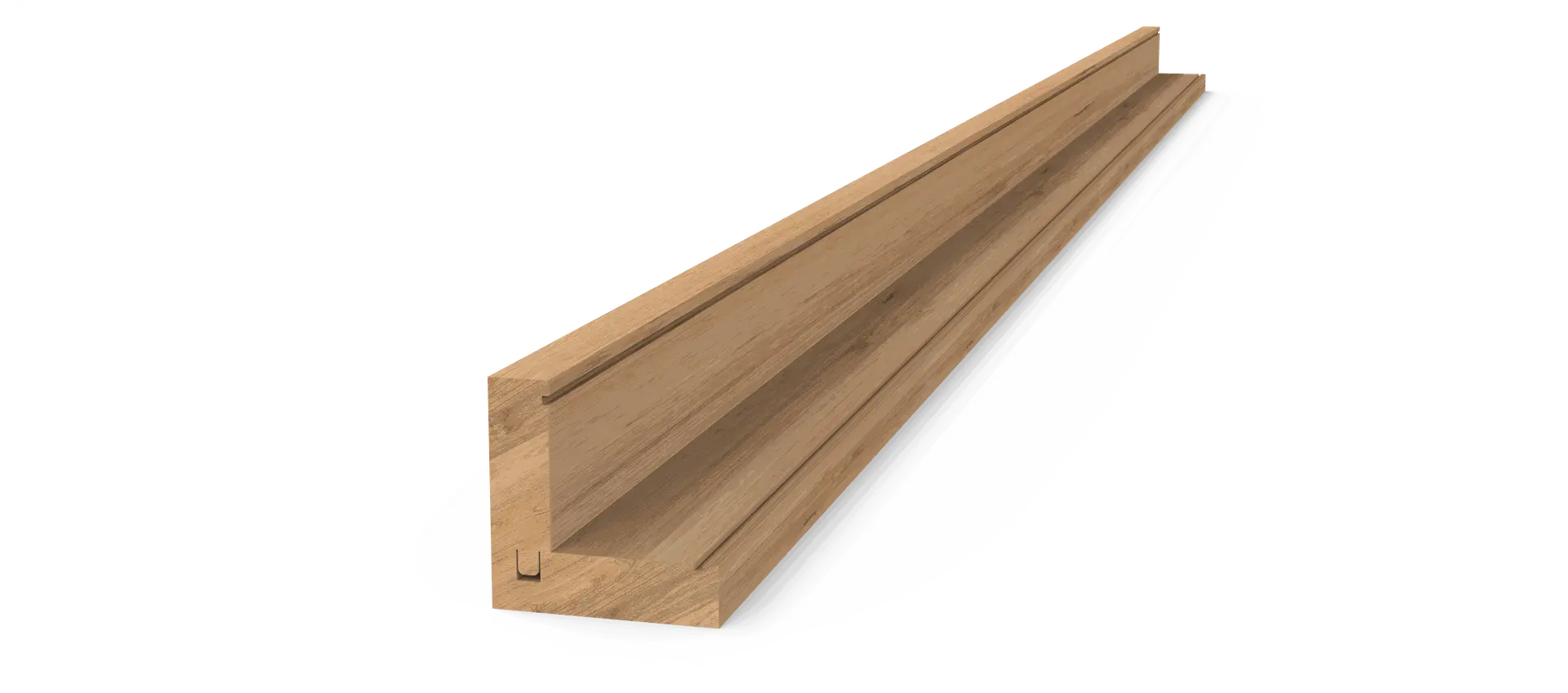

2 Piece External Corner
Ideal for achieving a bold, well-defined external corner detail, this two-piece profile is suitable for both horizontal and vertical cladding applications. It can be installed flush as a trim or over the cladding as a capping to conceal board ends. Best suited to hardwoods for a sharp, durable finish.

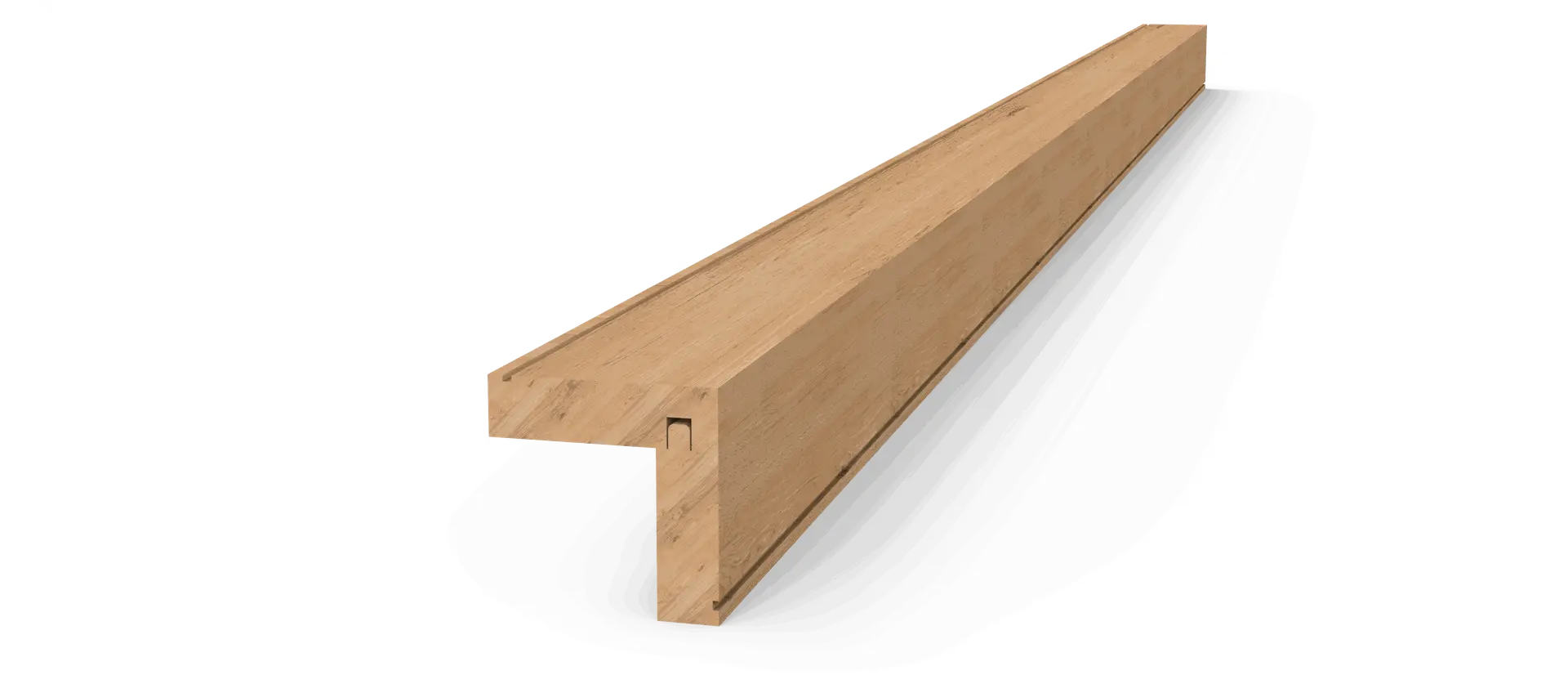

2 Piece Internal Corner
Designed for larger, more prominent internal corner details, this two-piece profile works with both horizontal and vertical cladding. It offers flexibility: installed flush for a neat trim or as a capping to cover board edges. Particularly recommended for use with hardwood cladding.

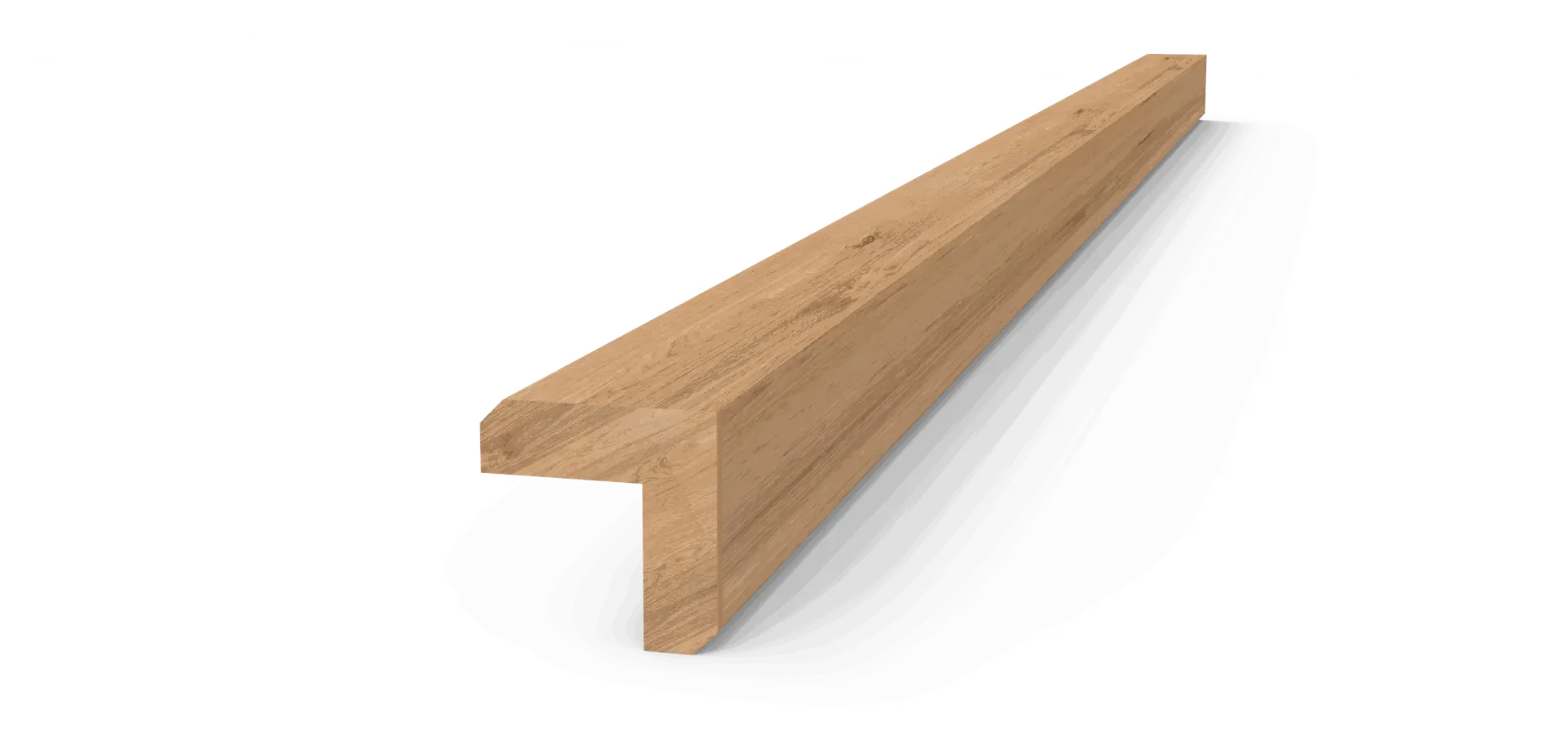

Solid External Corner
Machined from a single piece of timber, this solid external corner is typically fitted over the cladding to neatly cover board edges. Suitable for both horizontal and vertical applications, it’s a straightforward and effective option, especially well-matched to softwood cladding systems.

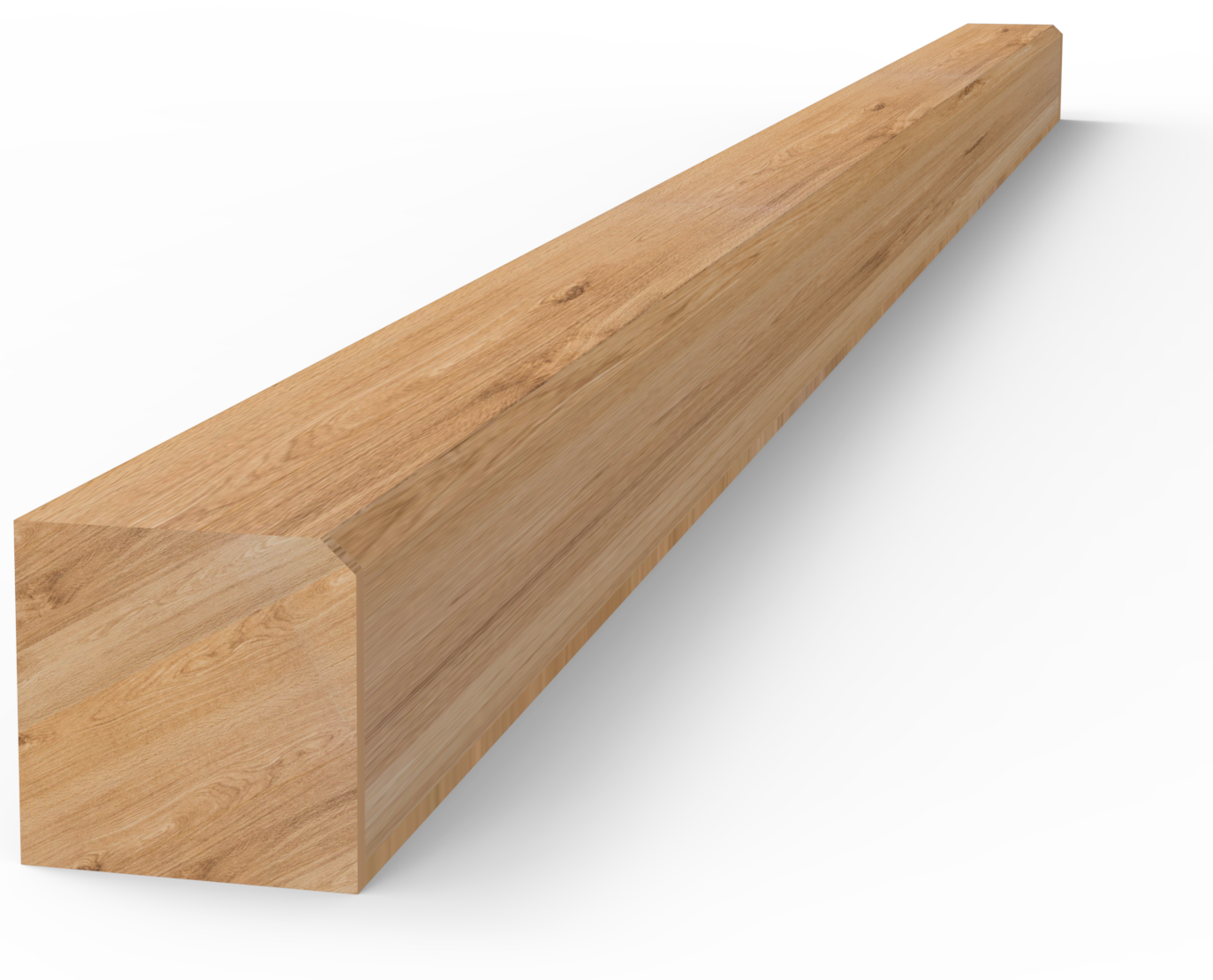

Square Corner Trim
This versatile trim can be installed to sit proud for a bold edge or shy to create a recessed shadow gap. It’s best not to align it perfectly with boards to avoid highlighting any movement. Ideal for use with rustic styles like Feather Edge or Waney Edge cladding for a refined finish.
